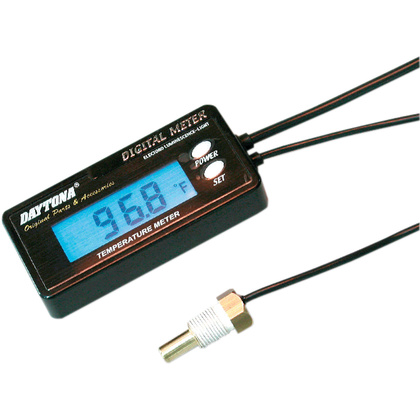

Compact size digital gauge clearly indicates the actual temperature
Switchable to Fahrenheit or Celsius
3V dry cell battery power
LED backlit display
Included Velcro mounting strips makes for instant installation on any flat surface
PT1/8 sender unit fits most Japanese liquid-cooled machines
Display body measures 76mm long x 36mm tall x 16mm thick
Display window measures 34mm x 15mm
Made in Japan
Country of Origin
76mm x 36mm x 16mm
-58F - 482F
3V Internal Dry Cell
Be the first to .
How many stars would you give this product?
Questions & Answers
Please advise thread size of sensor?
The sensor uses a PT 1/8 size. This translate to:
Threads per inch: 28
Outside Diameter: 0.383
Tapered thread 1 degree 47'
Truncation of roots and crests are rounded
55 degree thread angle
Pitch is measured in threads per inch
Taper is 3/4" per foot or, 1 in 16 on the diameter
How long is the cable
The cables for this unit measure about 1 meter long.
what is the other wire coming off of the display? i know one goes to the sensor.
The other wire coming off the display is actually a switched power lead. You are to hook it up to your bike's power system. Without it, the display won't be illuminated. It'll still display water temperature without being connected to an external power source, but you won't be able to read the display in low-light environments.
is this for autos as well
You can use this unit on pretty much any engine. The main limitation, other than the probe's dimensions, is the length of the sensor's cable - which is two meters.
