Dynojet Power Commander V Autotune Kit with Single O2 Sensor

Item Number: 343556

Universal Fit – Review specifications carefully.

In Stock Ships Next Business Day

Product Description


Dynojet Power Commander V Autotune Kit with Single O2 Sensor

Uses virtually the same technology found in Dynojet's patented Tuning Link dynamometer tuning software (for automated fuel mapping), along with a Bosch Wide Band O2 sensor.

Once connected to your machine's Power Commander V, the Auto Tune kit monitors the fuel mixture via the included Wide Band O2 sensor in the exhaust. It then sends this information to the Power Commander V and automatically corrects fueling while you ride. Each map has preset air/fuel ratio values included - simply plug in the unit and let it do the work.

Connects to your PC-V-equipped machine via a single cable and requires only a ground and 12V connection to be made to install. After that, plug the oxygen sensor into the exhaust and, if your exhaust doesn't have those, a steel weld-in 18mm O2 sensor bung is included.

Fully adjustable for advanced users that would like to change the air/fuel ratios from the baseline. Each throttle opening/RPM combination is individually adjustable, so that you can have both fuel economy, during cruise, while maintaining peak output at larger throttle openings. For most models of bikes it's also possible to adjust the air/fuel ratios in each gear. This gives you total control of the fueling in every gear and throttle/RPM area for absolute maximum performance.

The Auto Tune kit can be configured to run and correct at all times or by using the map switch port on the PCV. You can set it up so that you can switch back and forth between the tuning modes and the base map settings. You can also configure the Auto Tune kit to wait until the bike is at a certain operating temperature before beginning to make adjustments.

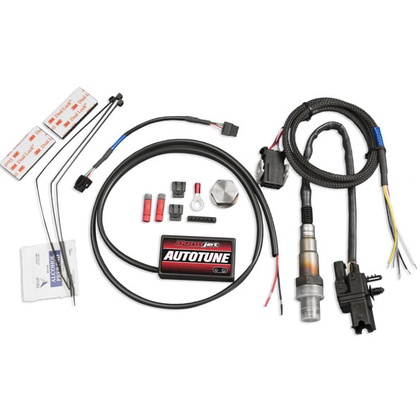

Universal Auto-tune kit is designed for use on any machine equipped with a Power Commander V. Each kit includes one O2 sensor, control module, custom length exhaust sensor cable, and a weld-in oxygen sensor boss kit

Product Note: Only fits machines equipped with Dynojet Power Commander V or POD-300 (sold separately).

Spec Details
CARB Approved No
Connection Type Splice-In
Country Of Origin USA
Thread 18 mm x 1.5
