Feuling Reaper 487 Race Series Chain Drive Cam Kit

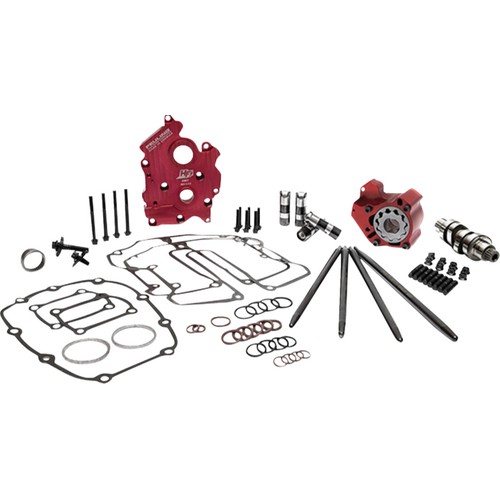

• 487 Reaper Chain Drive Camshaft, Cam Installation Kit, Race Series Lifters, One Piece Pushrod, Race Series Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
• Made in the USA

487 Reaper Camshaft

• Chain Drive
• 38 degree overlap
• RPM range 2,250 to 6,100
• Camshaft for 114" and 117" engine
• Responds very well to increased bore and or compression
• Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
• Cam specs measured in the engine on the lifter at 0.050 using a 1.61 rocker arm ratio

Cam Installation Kit

• Includes cam bearing, cam/crank hardware and gasket/O-ring kit

Race Series Lifters

• Full-travel hydraulic lifters made from machined steel designed with 0.200" of travel

One Piece Pushrod

• HP+ heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish

Race Series Oil Pump

• High flow 2.250 Chromoly gerotor gears
• 27% more pressure and scavenge gear volume over stock
• 42% more scavenge volume with matched passages, port sizing and holes to the engine case
• 46% more oil volume to the crankshaft and connecting rod bearing
• 15 to 25 degree cooler engine temperatures
• 15 to 30 degree cooler oil temperatures
• 10-30 more PSI of oil pressure
• Reduces wet sumping, blow by and oily air cleaners
• Magnets to help protect gears and pressure relief valve
• FEULING test results show a 50% reduction of engine sump oil level

High Flow Camplate

• Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved
• Feuling does not recommend tuning beyond stock emissions standards
