Feuling Reaper 487 Race Series Chain Drive Short Travel Cam Kit

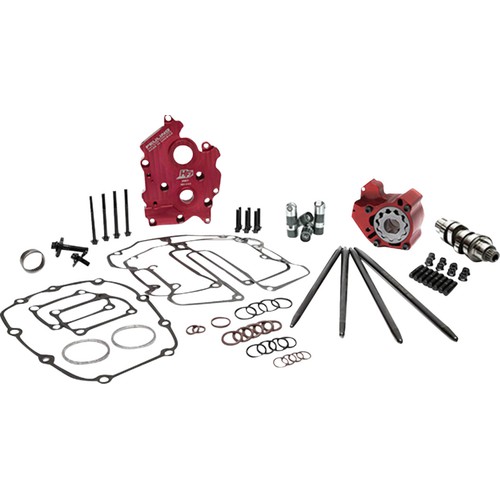

• 487 Reaper Chain Drive Camshaft, Cam Installation Kit, Short Travel Lifters, One Piece Pushrod, Race Series Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
• Made in the USA

487 Reaper Camshaft

• Bolt in
• Chain Drive
• 38 degree overlap
• RPM range 2,250 to 6,100
• Camshaft for 114" and 117" engine
• Responds very well to increased bore and or compression
• Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
• Cam specs measured in the engine on the lifter at 0.050 using a 1.61 rocker arm ratio

Cam Installation Kit

• Includes cam bearing, cam/crank hardware and gasket/O-ring kit

Race Series Short Travel Lifters

• Short travel hydraulic roller lifters, standard OD (0.8420-0.8423)
• Designed with 0.115 of total travel

One Piece Pushrod

• HP+ 0.165 wall, +0.040 longer
• Heavy duty 7/16" diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish

Race Series Oil Pump

• Increase oil pressure, scavenge volume and engine oil flow
• 30% more pressure gear volume over stock
• 53% more scavenge gear volume over stock
• 42% more scavenge volume with port sizing, matched passages and holes to the engine case
• 46% more oil volume to the crankshaft and connecting rod bearing
• 15 to 25 degree cooler engine temperatures
• 15 to 30 degree cooler oil temperatures
• 10-30 more PSI of oil pressure
• Reduces wet sumping, blow by and oily air cleaners
• Magnets in oil pump to help protect gears and pressure relief valve
• Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
• FEULING test results show a 50% reduction of engine sump oil level

High Flow Camplate

• Bolts into stock location
• Billet 7075 aluminum
• Feuling does not recommend tuning beyond stock emissions standards
