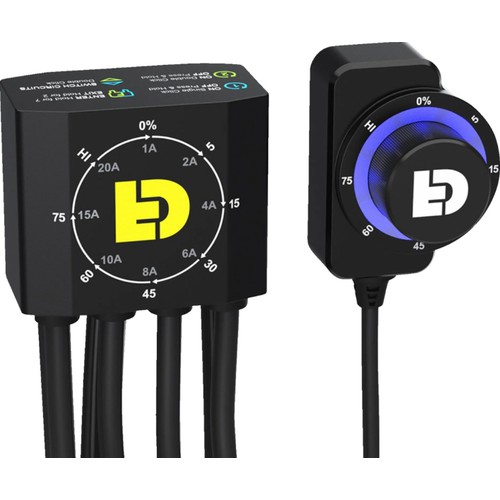

Denali Electronics DialDim Lighting Controller Denali Electronics DialDim Lighting Controller
- Integrates seamlessly with your vehicle's systems, offering intelligent flash features that enhance your visibility and safety on the road
- Easy installation with included 7/8" handlebar mount
- The controller housing and switch both feature a fully waterproof design with gaskets and O-rings at every joint to ensure hassle-free operation in outdoor environments
- Independently control two sets of lights on/off and intensity level using the single DialDim Switch
- Blue halo controls light set one and the green halo controls light set two
- Double click to switch between the two circuits
- Auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch
- A 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle's high beam switch
- lights also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected
- When enabled, the main lights (blue circuit 1) will cancel in sync with your signal to prevent washing out your factory turn signal
- When enabled, your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals
- When enabled, your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn
- Both light circuits are electronically fused and can be set right from the switch itself
- Halo will illuminate red to notify you when a circuit fused is tripped
- Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8 V
- If the battery voltage drops below 10.8 V the lights will not power on preventing you from being stranded
- Switch halo will flash 4 red LEDs to indicate the low voltage condition
- Integrates seamlessly with your vehicle's systems, offering intelligent flash features that enhance your visibility and safety on the road
- Easy installation with included 7/8" handlebar mount
- The controller housing and switch both feature a fully waterproof design with gaskets and O-rings at every joint to ensure hassle-free operation in outdoor environments
- Independently control two sets of lights on/off and intensity level using the single DialDim Switch
- Blue halo controls light set one and the green halo controls light set two
- Double click to switch between the two circuits
- Auxiliary lights will automatically switch between your selected dim setting to full intensity with the factory high beam switch
- A 0% dim setting on the switch allows your lights to be "off" during normal driving conditions but will jump to 100% intensity with your vehicle's high beam switch
- lights also react to turn signal and horn inputs in this mode but will remain off when no inputs are detected
- When enabled, the main lights (blue circuit 1) will cancel in sync with your signal to prevent washing out your factory turn signal
- When enabled, your amber visibility lights (green circuit 2) will flash in sync with your factory turn signals
- When enabled, your auxiliary lights on both circuits will strobe at 4Hz when you sound your horn
- Both light circuits are electronically fused and can be set right from the switch itself
- Halo will illuminate red to notify you when a circuit fused is tripped
- Upon vehicle startup, the switch halo will flash green to indicate a healthy battery voltage, or flash red to indicate a battery voltage that is below 11.8 V
- If the battery voltage drops below 10.8 V the lights will not power on preventing you from being stranded
- Switch halo will flash 4 red LEDs to indicate the low voltage condition
Product Note:
| Specification | Details |
|---|---|
| Amps | 30 Amps (combined) |
| Clamp Diameter | 7/8 in. |
| Color | Black |
| Voltage | 12V |
| Amps | 30 Amps (combined) |
| Clamp Diameter | 7/8 in. |
| Color | Black |
| Voltage | 12V |
